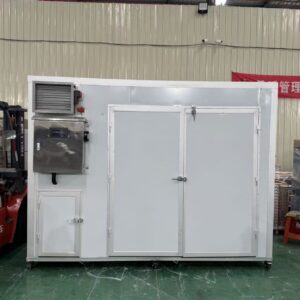

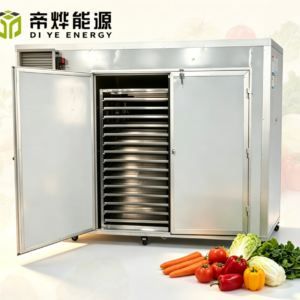

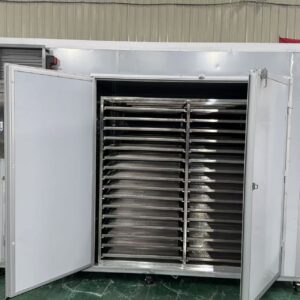

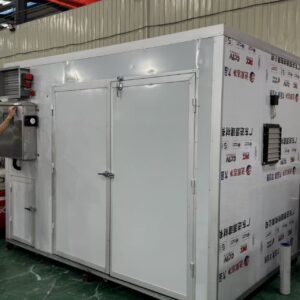

300 kg per Batch Cabinet Drying Room for Mango, Strawberry, Banana and Walnut

Sala de secado tipo armario de 300 kg por lote para mango, fresa, plátano y nuez

The DY-15YTH integrated cabinet drying room: 300 kg per batch, 64 plastic trays, 380 V three-phase, ready to dry as soon as it is wired in.

Model: DY-15YTH

Batch capacity: 300 kg per batch (300–500 kg range)

Chamber: 3000 × 1350 × 2300 mm

Trays: 64 pcs, 800 × 600 mm

Rated power: 4.25 kW

Reply within one working day · Custom capacities and chamber sizes on request

Drying capacity

300 kg per batch (300–500 kg range)

Heating capacity

15 kW

Power supply

380 V / 50 Hz

Refrigerant

R134a, 3800 g

Noise

≤ 75 dB

Fabricado en

Foshan, China

Quoting

Per project

01Product detail

How this system works

The DY-15YTH is the middle build: a 300 kg per batch cabinet with 64 plastic trays, the same heat pump and PLC control as the rest of the range, and the same ready-to-run delivery. Trays are 800 × 600 mm, so a loading plan written for one material carries over to the next.

Sugar-rich fruit is where chamber control matters most. The heat pump holds the drying curve and condenses the moisture out through a drain instead of blowing it back over the batch, which is what keeps colour and aroma in the finished product. The build covers the 300–500 kg range depending on the material.

The chamber measures 3000 × 1350 × 2300 mm and the complete unit weighs 700 kg, built from polyurethane insulated panels around a stainless drying volume. On a standard 380 V three-phase supply it draws 8 A rated and 26.8 A at maximum.

Core components are the heat pump and the PLC. Protection covers the refrigeration circuit and the air path, so a fault stops the batch instead of spoiling it. Video outgoing inspection is provided and every unit ships in a wooden box.

Models, power and dimensions

Model	Batch capacity	Heating capacity	Rated power	Current rated / max	Moisture removal	Air volume	Refrigerant charge	Trays, 800 × 600 mm	Chamber L×W×H	Unit weight
DY-9YTH	100 kg	10.5 kW	3 kW	6 A / 18 A	10 L/h	3,000 m³/h	R134a, 1,500 g	32	2500 × 950 × 2300 mm	600 kg
DY-15YTH	300 kg	15 kW	4.25 kW	8 A / 26.8 A	15 L/h	7,000 m³/h	R134a, 3,800 g	64	3000 × 1350 × 2300 mm	700 kg
DY-21XYH	500 kg	21 kW	7 kW	10 A / 38.44 A	21 L/h	9,000 m³/h	R134a, 5,000 g	96	3000 × 1950 × 2300 mm	800 kg

All three: 380 V / 50 Hz, 5-45 °C ambient, plastic trays on 800 × 600 mm, stainless chamber behind insulated panels.

Model: DY-15YTH
Drying capacity: 300 kg per batch (300–500 kg range)
Heating capacity: 15 kW
Rated power: 4.25 kW
Power supply: 380 V / 50 Hz
Current (rated / max): 8 A / 26.8 A
Moisture removal: 15 L/h
Air volume: 7000 m³/h
Refrigerant: R134a, 3800 g
Noise: ≤ 75 dB
Ambient temperature: 5~45 °C
Chamber (L×W×H): 3000 × 1350 × 2300 mm
Trays (plastic): 64 pcs, 800 × 600 mm
Unit weight: 700 kg
